Interface
|
| Fixed WAN Port |
1x GbE RJ-45 |
| WAN/LAN Switchable Port |
1x GbE RJ-45 |
| Fixed LAN Port |
5x GbE RJ-45 |
| SIM Slot |
2x Standard-Sized (1 SIM online at a time) |
| USB Port |
1x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |

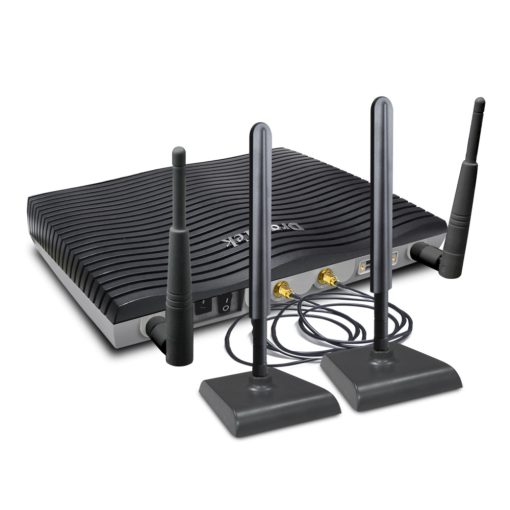

| LTE Antenna |
2x External Dipole
Gain: 3 dBi |
| Wi-Fi Antenna |
2x External Dipole
Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
(wireless model) |
| 2.4G WLAN |
802.11n 2x2 MIMO 400Mbps (wireless model) |
| 5G WLAN |
802.11ac Wave 2 2x2 MU-MIMO 867Mbps (dual-band model) |
Performance
|
| NAT Throughput |
800 Mbps |
| NAT Throughput w/ Hardware Acceleration |
940 Mbps (Single WAN)
1.8 Gbps (Dual WAN) |
| IPsec VPN Performance |
290 Mbps (AES 256 bits) |
| SSL VPN Performance |
120 Mbps |
| Max. Number of NAT Sessions |
60,000 |
| Max. Concurrent VPN Tunnels |
50 |
| Max. Concurrent OpenVPN + SSL VPN |
25 |
LTE
|
| LTE Category |
6 |
| Max. Data Rate |
300 Mbps downlink, 50 Mbps uplink |
| FDD Band |
1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) |
| TDD Band |
38 (2600MHz), 40 (2300MHz) |
| WCDMA (3G) Band |
1, 8 |
| For other band availability, please contact your local DrayTek distributor or us |
Internet Connection
|
| IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 |
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging |
|
| Multi-VLAN/PVC |
|
| Wireless WAN |
(ac model) |
| 3G/4G/LTE WAN with USB modem |
|
| Load Balancing |
IP-based, Session-based |
| WAN Active on Demand |
Link Failure, Traffic Threshold |
| Connection Detection |
ARP, Ping |
| WAN Data Budget |
|
| Dynamic DNS |
|
| DrayDDNS |
|
LAN Management
|
| VLAN |
802.1q Tag-based, Port-based |
| Max. Number of VLAN |
16 |
| Number of LAN Subnet |
8 |
| DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias |
|
| Wired 802.1x Authentication |
|
| Port Mirroring |
|
| Local DNS Server |
|
| Conditional DNS Forwarding |
|
| Hotspot Web Portal |
|
| Hotspot Authentication |
Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking
|
| Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
| High Availability |
|
| DNS Security (DNSSEC) |
|
| Multicast |
IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| Local RADIUS server |
|
| SMB File Sharing |
(Requires external storage) |
VPN
|
| LAN-to-LAN |
|
| Teleworker-to-LAN |
|
| Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication |
Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication |
Pre-Shared Key, X.509 |
| IPsec Authentication |
SHA-1, SHA-256 |
| Encryption |
MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) |
Load Balancing, Failover |
| Single-Armed VPN |
|
| NAT-Traversal (NAT-T) |
|
| DrayTek VPN Matcher |
|
Firewall & Content Filtering
|
| NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
| VPN Pass-Through |
PPTP, L2TP, IPsec |
| IP-based Firewall Policy |
|
| Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense |
|
| Spoofing Defense |
|
Bandwidth Management
|
| IP-based Bandwidth Limit |
|
| IP-based Session Limit |
|
| QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization |
|
Wireless LAN (ac model)
|
| Number of SSID |
4 per radio band |
| Security Mode |
WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication |
Pre-Shared Key, 802.1X |
| WPS |
PIN, PBC |
| WDS |
Repeater (5GHz only) |
| Access Control |
Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| AirTime Fairness |
|
| Band Steering |
(ac model) |
| MU-MIMO |
(5GHz Only) (ac model) |
| WMM |
|
VoIP Gateway (V model)
|
| Protocol |
SIP, RTP/RTCP, ZRTP |
| SIP Registrars |
12 |
| Dial Plan |
Phone Book, Digit Map, Call Barring, Regional |
| Call Features |
Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec |
G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID |
FSK_ETSI, FSK_BELLCORE, DTMF |
Management
|
| Local Service |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import |
|
| Config File Compatibility |
Vigor2926 LTE |
| Firmware Upgrade |
TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege |
|
| Access Control |
Access List, Brute Force Protection |
| Notification Alert |
SMS, E-mail |
| SNMP |
v1, v2c, v3 |
| Syslog |
|
| Managed by VigorACS |
|
| Central VPN Management |
8 VPN |
| Central AP Management |
20 VigorAP |
| Mesh Network |
7 VigorAP |
| Central Switch Management |
10 VigorSwitch |
Physical
|
| Power Supply |
DC 12V @ 2.5A |
| Max. Power Consumption |
27.6 watts (Lac model) |
| Dimension |
241mm x 165mm x 44mm |
| Weight |
830g (Lac model) |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
-25 to 70°C |
| Operating Humidity (non-condensing) |
10 to 90% |
| Certificate |
 |
