Kis méret, nagy teljesítmény

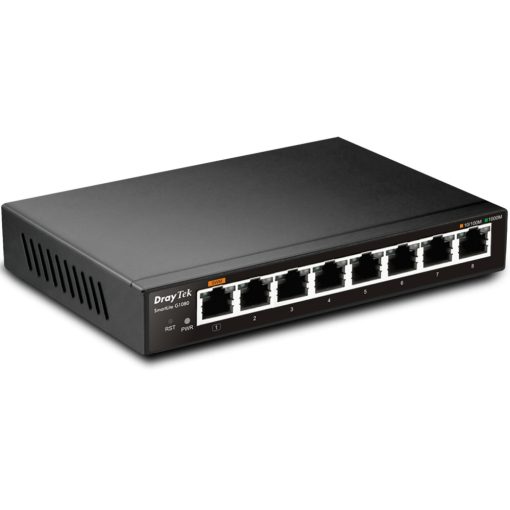

A DrayTek VigorSwitch G1080 egy rendkívül kompakt, 8 portos smart lite Gigabit switch. Alapvető menedzsmentet biztosít, beleértve a 802.1q VLAN-t, a 802.1p CoS QoS-t, a link-Aggregationt, Storm Kontrollt és a Loop Preventiont. Tökéletes intelligens otthonhoz / SOHO-hoz, a hálózati hatékonyság és a biztonság igényeivel
Interface
|
| Ethernet RJ-45 |
8x 10/100/1000Mbps Ethernet, RJ-45 |
| Button |
1x Factory Reset Button |
Capacity
|
| Buffer Size |
96 Kbit |
| Switching Capacity |
16 Gbps |
| Forwarding Rate |
11.9 Mpps (64 bytes) |
| MAC Address Table |
4k |
| Jumbo Frame |
Up to 9KB |
Networking Standards
|
| IP Version |
IPv4 |
| Ethernet Standards |
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.1q Tag-based VLAN
802.3x Flow Control
802.3 Auto-Negotiation
802.1p Class of Service
802.3ad LACP
802.3az EEE |
VLAN
|
| Max.Number of VLAN |
8 |
| VLAN Type |
802.1q Tag-based |
QoS
|
| Number of QoS Queues |
4 |
| Rate Limit |
Port-Based Ingress and Egress |
| Queue Scheduling |
WFQ, WRR |
| CoS (Class of Service) |
802.1p CoS |
Traffic Control
|
| Storm Control |
Broadcast, Multicast, Unicast |
| Loop Prevention |
|
Link Aggregation
|
| Max. Number of Group |
1 |
| Max. Number of Member in Each Group |
2 (Port 7 and Port 8) |
| Type |
LACP |
Multicast
|
| IGMP Snooping |
v2 |
| Max. Number of Multicast Group |
128 |
Management
|
| Web Interface |
HTTP |
| Config File Export/Import |
|
| Managed by Vigor Router SWM |
|
| Managed by VigorConnect |
|
Physical
|
| Power Input |
DC 5V @ 1A |
| Max. Power Consumption |
3.3 watts |
| Dimension (L x W x H) |
154mm x 85mm x 26mm |
| Weight |
320g (11.3oz) |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
-20 to 70°C |
| Operating Humidity |
10 to 90% non-condensing |
| Storage Humidity |
5 to 90% non-condensing |
| Certificate |
  |
